LGLG Outdoor Units

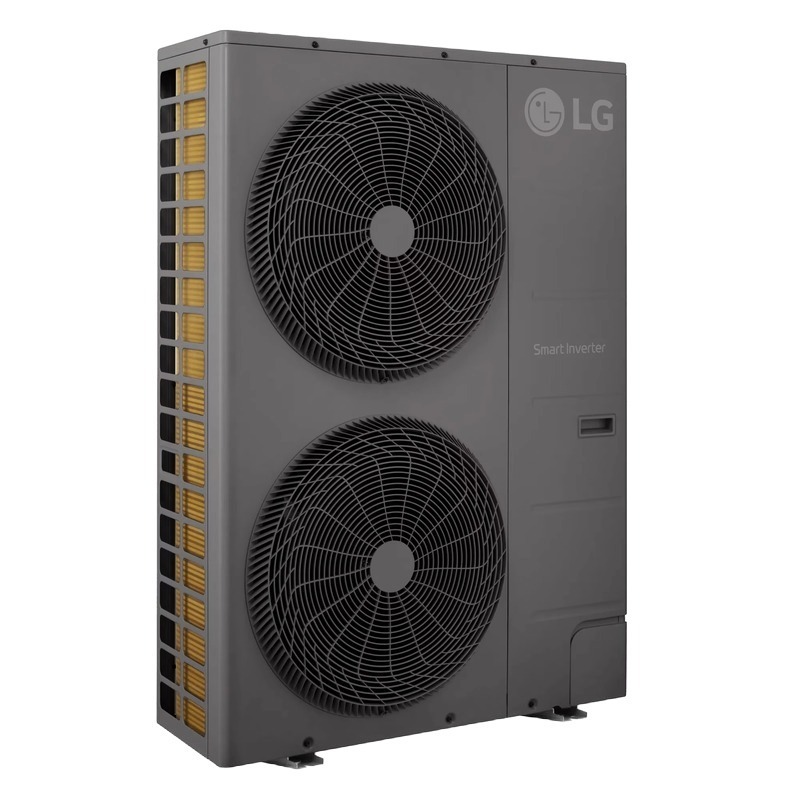

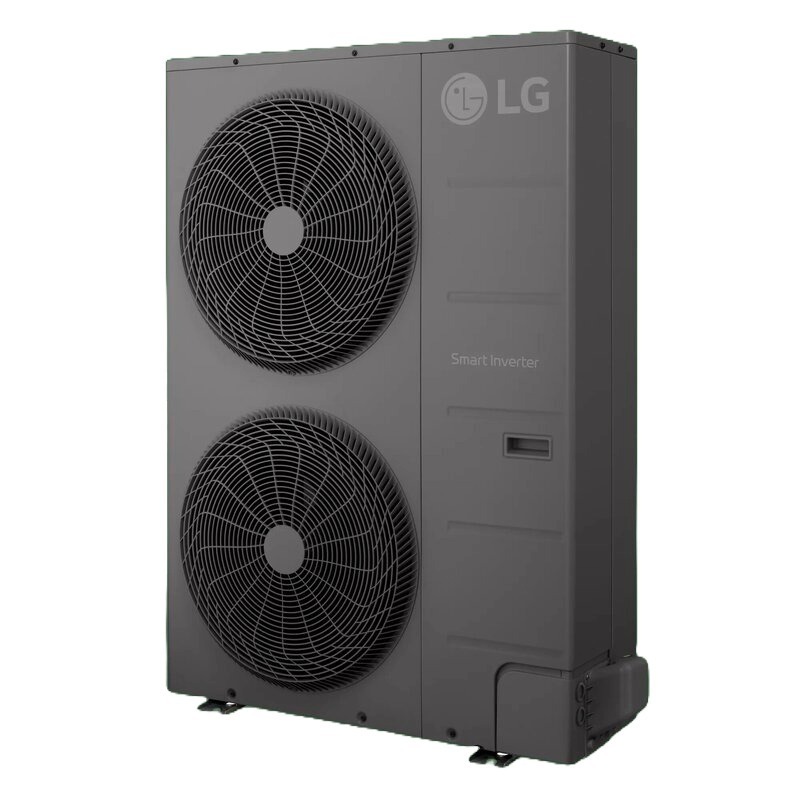

KUSXE481A - Single Zone ODU - CV (Contractor Value) 48k BTU for Multi position AHU (R32)
Model KUSXE481A
1 of 10
- Brand
- LG
- Category
- LG Outdoor Units
- Model Number
- KUSXE481A
- Heating BTU
- 50,000 BTU
- Cooling BTU
- 47,000 BTU
- Refrigerant
- R32
High-Efficiency Comfort Designed for Simplified Installation
KUSXE481A is an LG HVAC product listed in the LG dealer price list. Single Zone ODU - CV (Contractor Value) 48k BTU for Multi position AHU (R32) Product type: Outdoor unit.
Rated Capacity and Efficiency
KUSXE481A is an LG HVAC product listed in the LG dealer price list. Single Zone ODU - CV (Contractor Value) 48k BTU for Multi position AHU (R32) Product type: Outdoor unit. Capacity: 48k BTU. Refrigerant: R32
KUSXE481A - Single Zone ODU - CV (Contractor Value) 48k BTU for Multi position AHU (R32)
| Feature | Spec |
|---|---|
| Model | KUSXE481A |
| AHRI Reference Number | 217,559,575 |
| Ambient Temperature Range | 4 - 118°F |
| Brand/Manufacturer | LG |
| Capacity | 48k BTU |
| Category | LG Outdoor Units |
| Compressor Type | Twin Rotary |
| Condenser Stages | Variable Speed |
| Dealer Price List Description | Single Zone ODU - CV (Contractor Value) 48k BTU for Multi position AHU (R32) |
| Decibel Level (dBA) | 56 Decibels |
| Depth | 13" |
| EER2 | 10 |
| Electric Heat | Heat Pump |
| Feature | Spec |
| Height | 46 1/16" |
| HSPF2 | 8.5 |
| Liquid Valve Size | 3/8" |
| Manufacturer | LG |
| Maximum CFM | 3,884 |
| Min. Breaker Size | 30.7 Amps |
| Min/Max Outdoor Temp for Cooling | 14 - 118°F |
| Min/Max Outdoor Temp for Heating | 4 - 64°F |
| MOCP | 40 Amps |
| Model | KUSXE481A |
| Product Type | Outdoor unit |
| Rated Cooling Capacity | 47,000 BTU |
| Rated Heating Capacity | 50,000 BTU |
| Refrigerant | R32 |
| Safety Information | PROPOSITION 65 WARNING This product and many products on our site may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here. |
| SEER2 (Efficiency) | 16 |
| SKU | KUSXE481A |
| Suction Valve Size | 3/4" |
| Tonnage | 4 Ton |
| Voltage | 208/230V 1 Phase 60Hz |
| Warranty | 10 Years Compressor and 10 Years Parts with Online Registration |
| Weight | 190.2 lb |
| Width | 37 3/8" |
| AHRI Reference Number | 218079672218079667218079666218079665218079664218079643218079642218009407218009406218009405218009404217735799217655755217655754217559575217175970 |
Documents
- Installation ManualKUSXE Installation Manual
- OtherKUSXE / KNSLE Engineering Manual
- WarrantyLG R32 Residential System Warranty
- Submittal / Specification SheetKUSXE481A / KNSLE482A Submittal
- AHRI CertificateAHRI 218079672
- AHRI CertificateAHRI 218079667
- AHRI CertificateAHRI 218079666
- AHRI CertificateAHRI 218079665
- AHRI CertificateAHRI 218079664
- AHRI CertificateAHRI 218079643
- AHRI CertificateAHRI 218079642
- AHRI CertificateAHRI 218009407
- AHRI CertificateAHRI 218009406
- AHRI CertificateAHRI 218009405
- AHRI CertificateAHRI 218009404
- AHRI CertificateAHRI 217735799
- AHRI CertificateAHRI 217655755
- AHRI CertificateAHRI 217655754
- AHRI CertificateAHRI 217559575
- AHRI CertificateAHRI 217175970
